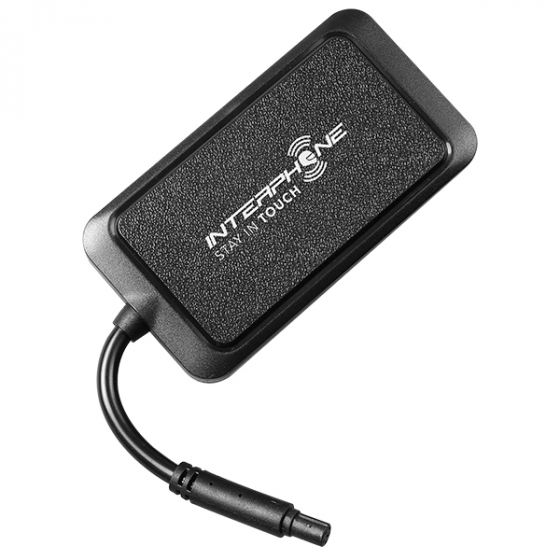

INTERPHONE GPS TRACKER PREMIUM
Description
LOCATE YOUR MOTORBIKE IN EVERY
INSTANT THANKS TO GPS TRACKER
The trackers are ready to use, you have to simply
activate them with one sim data / voice to start
monitoring your vehicle.
The small size also guarantees you a discrete
installation.
To make using them even easier the devices
can be managed via SMS or, alternatively,
through a dedicated App (in subscription).
The certified impermeability makes them
resistant to rain or water during the
ordinary maintenance.
INSTANT THANKS TO GPS TRACKER
The trackers are ready to use, you have to simply
activate them with one sim data / voice to start
monitoring your vehicle.
The small size also guarantees you a discrete
installation.
To make using them even easier the devices
can be managed via SMS or, alternatively,
through a dedicated App (in subscription).
The certified impermeability makes them
resistant to rain or water during the
ordinary maintenance.
Specification
GPS iANGEL10 GPS iANGEL20
GENERAL CHARACTERISTICS
• GPS + LBS
It allows to locate the position in real time or periodically
• IPX5 waterproof
Water resistant to guarantee operation stable
• ACC detection
To know when the ignition is started and stopped
• Compact size and hidden LED
To position it discreetly
GSM SPECIFICATIONS
• Communication system: GSM
• GSM frequency: 850/900/1800 / 1900MHz
• GPRS class: 12, TCP / IP
• Memory: 32 + 32 Mb
• Phase error: RMSPE <5, PPE <20
• Maximum output: GSM850 / GSM900: 33 ± 2 dBm
GSM1800 / GSM1900: 30 ± 2 dBm
• Maximum frequency error: ± 0.1 ppm
• Reception sensitivity: Class II RBER2% (- 102dBm)
GPS SPECIFICATIONS
• Chipset: high sensitivity GPS chip
• Frequency: GPS L1, 1575.42 MHz
• Channel: 66
• Position accuracy: <10 meters
• Tracking sensitivity: -165 dBm
• Acquisition sensitivity: -148 dBm
FUNCTIONS AND CONTENTS OF THE PACK
• GSM / GPS antenna: integrated quad band GSM antenna,
ceramic GPS antenna
• LED indicator: GPS (blue), GSM (green)
• Working voltage / current: 9-36 VDC / 32 mA (12VDC)
18 mA (24 V DC)
• Standby current: ≤5mA
• Operating temperature: -20 ° ~ + 70 °
• Waterproofing rate: IPX5
• Battery: 100mAh / 3.7V industrial lithium battery
• Weight of the device: 26.6 g
• Size of the device: 73.8 (L) × 25.9 (L) × 12.2 (A) mm
GENERAL CHARACTERISTICS
• GPS + LBS
It allows to locate the position in real time or periodically
• IPX5 waterproof
Water resistant to guarantee operation stable
• ACC detection
To know when the ignition is started and stopped
• Compact size and hidden LED
To position it discreetly
GSM SPECIFICATIONS
• Communication system: GSM
• GSM frequency: 850/900/1800 / 1900MHz
• GPRS class: 12, TCP / IP
• Memory: 32 + 32 Mb
• Phase error: RMSPE <5, PPE <20
• Maximum output: GSM850 / GSM900: 33 ± 2 dBm
GSM1800 / GSM1900: 30 ± 2 dBm
• Maximum frequency error: ± 0.1 ppm
• Reception sensitivity: Class II RBER2% (- 102dBm)
GPS SPECIFICATIONS
• Chipset: high sensitivity GPS chip
• Frequency: GPS L1, 1575.42 MHz
• Channel: 66
• Position accuracy: <10 meters
• Tracking sensitivity: -165 dBm
• Acquisition sensitivity: -148 dBm
FUNCTIONS AND CONTENTS OF THE PACK
• GSM / GPS antenna: integrated quad band GSM antenna,
ceramic GPS antenna
• LED indicator: GPS (blue), GSM (green)
• Working voltage / current: 9-36 VDC / 32 mA (12VDC)
18 mA (24 V DC)
• Standby current: ≤5mA
• Operating temperature: -20 ° ~ + 70 °
• Waterproofing rate: IPX5
• Battery: 100mAh / 3.7V industrial lithium battery
• Weight of the device: 26.6 g
• Size of the device: 73.8 (L) × 25.9 (L) × 12.2 (A) mm
